Live Heatmap Generation
Makes hot zones, cold zones, and hidden attention patterns visible in real time so teams can see where the floor is truly working.
Pano
360° Vision.
Total Coverage.
Pano is the spatial specialist. Its wide-area view makes movement patterns, density, circulation, and zone behaviour visible across the parts of the floor that usually remain impressionistic.

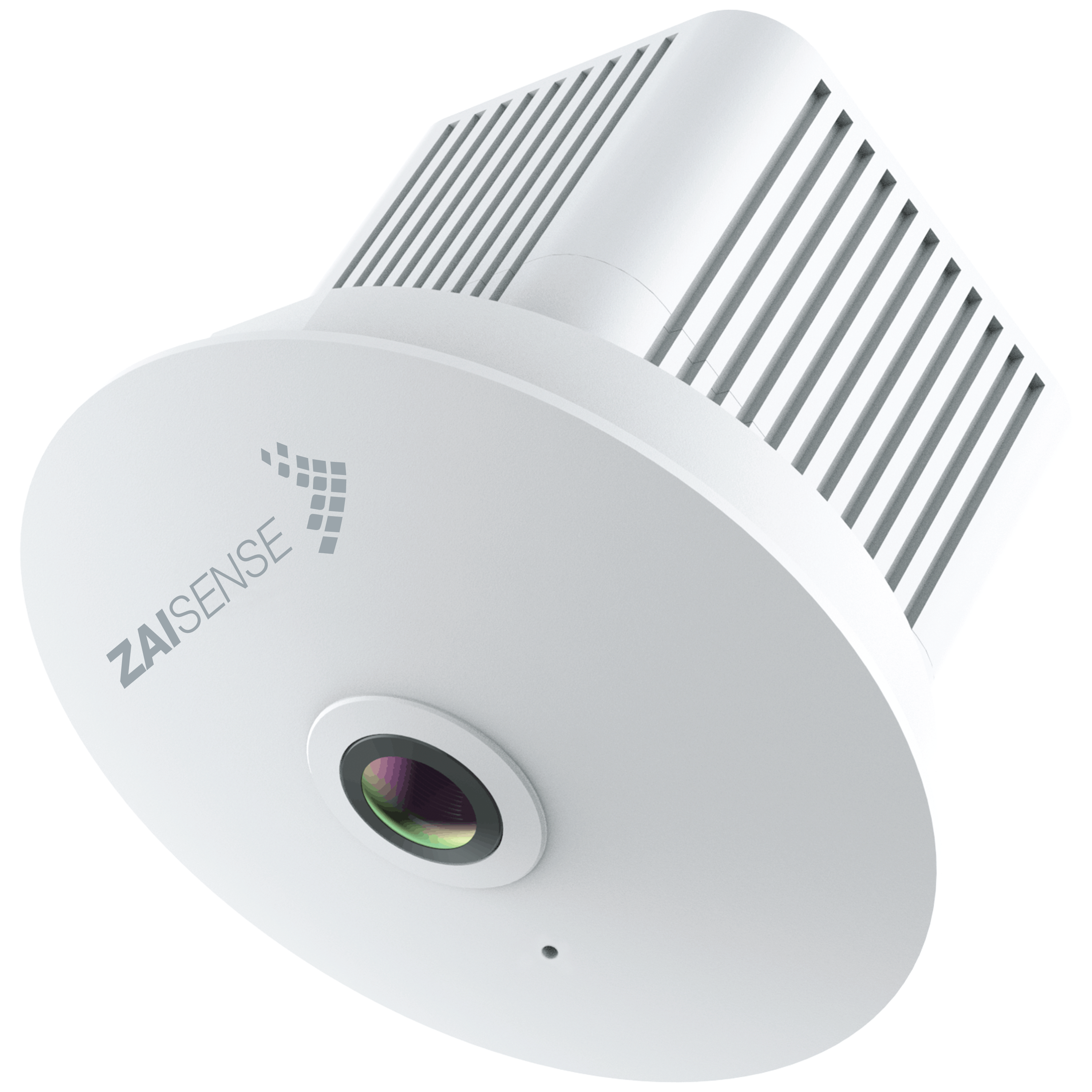

Pano Overview
One overhead sensor for the spaces that are hardest to understand.
Pano is the ZAISENSE device for open environments where the question is not who passed through, but how the whole space behaves. It reveals spread, density, circulation, hesitation, and the hidden geometry of movement.
Purpose-built for heatmaps, pathmaps, and zone-by-zone movement analysis
Ideal for malls, atriums, terminals, open retail floors, and exhibition venues
Replaces fragmented visual coverage with one cohesive spatial read
Preserves privacy while surfacing actionable spatial intelligence
Key Features
What Pano Delivers
Pathmap Visualization
Reveals natural movement lines, hesitation points, and circulation loops so planners can understand how people actually navigate the environment.
Wide-Area Coverage
One Pano can interpret large open areas that would otherwise require fragmented multi-camera coverage and more difficult analysis.
Footfall Counting
Adds reliable volume measurement to wide-area spatial intelligence, grounding heatmaps and paths in quantifiable traffic data.
Space Utilization
Shows which zones attract activity, which are underused, and how layout changes alter the flow and value of the environment.
Privacy Protected
Captures behavioural patterns without turning the environment into a surveillance system, preserving privacy while revealing movement truth.
Technical Specifications
Hardware Specs
| Sensor | 1/3" CMOS |
| Computing Power | 0.5T |
| Focal Length | 0.95mm fisheye |
| Memory | 512MB RAM |
| Storage | 8GB onboard |
| Data Retention | 90 days local |
| Network | RJ45 100M Ethernet |
| Power | PoE IEEE 802.3af, 48V · DC 12V |
| Coverage Diameter | 6–10 metres |
| Simultaneous Targets | Up to 50 |
| Operating Temperature | −20°C to +50°C |
Map Your Space with Pano
Share your floor plan and we'll design the Pano deployment that reveals how your open environment truly behaves in motion.
